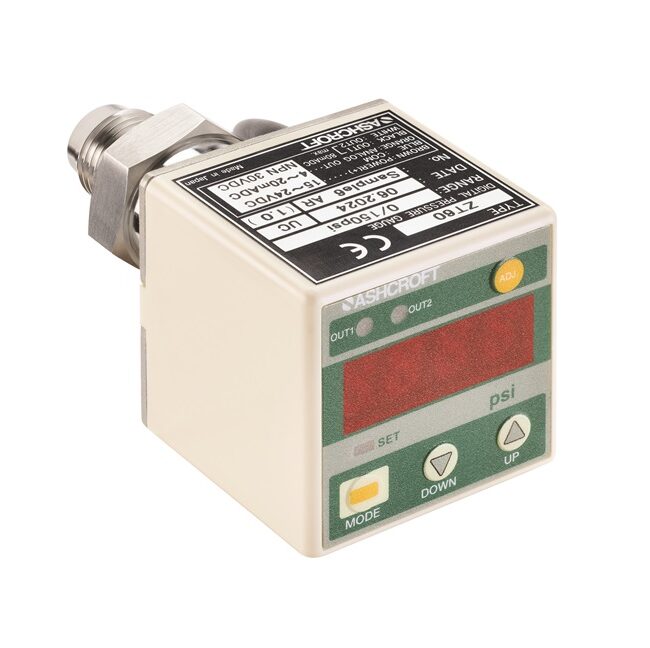

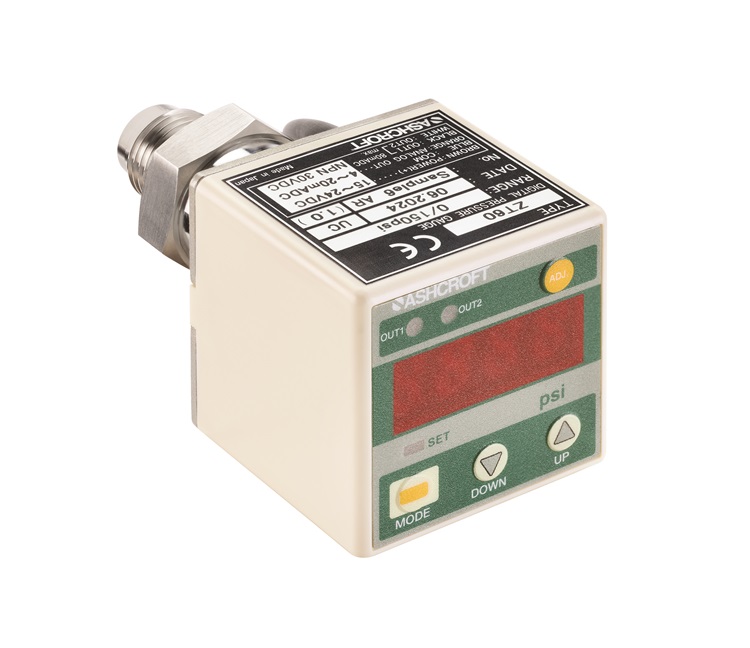

The Ashcroft® ZT60 high purity transmitter with display is designed for use in UHP gas and fluidic delivery systems. It incorporates an LED digital display which features the ability to program functions such as scaling, loop check, comparator output and several other functions suitable for use with semiconductor processes and high purity gases.
Key Features
CE approved and RoHS compliant
Class 10 cleanroom packaged
7 RA (0.18 μm) surface finish available
316L Stainless Steel and Copper Nickel wetted parts for protection against corrosion
4-20 mA or 1-5 Vdc output
Available in gauge and compound ranges
Bright easy to see LED display with NPN or PNP switch outputs
A wide variety of available process connections
Markets & Applications
Machine Automation
High-Purity Gas Delivery Systems
Exhaust gas for CVD and etching equipment
Process gas analyzers
Gas Sticks
Stability
≤±0.25% span/year at reference conditions
Output Signal
1-5 VDC (3-wire)
4-20 mA (2-wire)
Process Connection Size
9/16-18 UNF or 7/8-14 UNF (compatible with various VCR®, UJR and CVC fittings
Accuracy
±0.50% or ±1.0% of span (Ref. 23 °C) Accuracy includes the effects of linearity, hysteresis and repeatability
Case or Body Material
Polycarbonate/ABS
Wetted Parts Material
Copper Nickel
Stainless steel 316L (1.4404)
Ranges
2 ... 200 bar / 30 ... 3000 psi
Compound
